R.T.S. ROCHEM® SEWAGE SYSTEMS – Navies

Improved technology for water treatment with ROCHEM MBR Membrane Bio Reactor

The combination of a high density biomass reactor with the UF module system for ultrafiltration forms the operating unit of the Membrane Bio Reactor ROCHEM MBR which gives many advantages for waste water treatment.

Rochem Solution

The efficiency of the Membrane Biological Reactor allows for the purification of black water on ships to achieve a quality superior to the international limit values for contaminants imposed by MARPOL/IMO.

Therefore the environmentally sound purified waste water can be discharged overboard in any harbor or coastal area.
Rochem RO systems are designed to fulfil all Naval requirements,such as:

  • Shock-and vibration resistance
  • EMC
  • Airborne noise emission
  • A-magnetic design, etc.

according to NATO STANAG regulations
seaw2

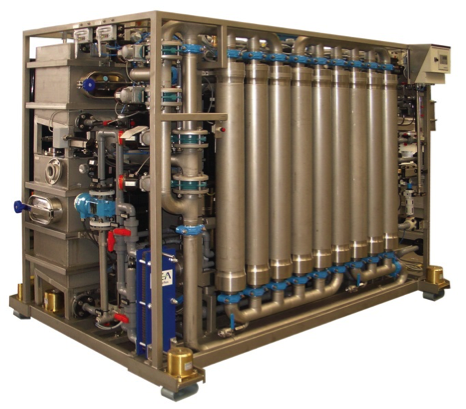

ROCHEM MBR TYPE 03/09-5
Capacity: 25 m³ / day

seaw3

fitted in Italian Navy FREMM Frigates
For the treatment of
Black Water, Accommodation Grey Water,
Laundry Water and Galley Grey Water

Design and Construction Standards

The ROCHEM RO Fresh Water Generators are designed, fabricated and approved according to the following National and International Standards:

  • DIN – (German Industrial Standard)
  • VDE – (Association of German Electricians)
  • VDMA- (Organisation of German Mechanical Engineers)
  • IEC – International Electric Standards for Electric Motors
  • ISO – International Standards
  • NATO-Stanag BV 043(85) Shock-resistance
  • NATO-Stanag BV 044(87) Vibration-resistance
  • NATO-Stanag BV 0120 rev. 03/86 Electromagnetic Compatibility (EMC)
  • BV 3000-2, rev. 02/91 E-Plants, planning and general directives
  • BV 3100 E-Plants
  • BV 3300, rev. 06/90 E-Plants, switch cabinets, switches
  • BV 3400, rev. 03/88 E-Plants, cabling

The ROCHEM RO units are designed and constructed to fulfil the requirements of the following Classification societies:

  • Germanischer Lloyd
  • Lloyds Register of Shipping
  • American Bureau of Shipping
  • Det Norske Veritas
  • Bureau Veritas
  • RINA Certificates for high pressure hoses
